Case IH Parallel Arm Replacement

Case IH Complete Arm Set

Case IH Lower Arm Bracket

Case IH Complete Arm Set

Genesis Case IH parallel arm complete set made from AR abrasion-resistant steel.

Built from abrasion-resistant (AR) steel to outlast factory Case IH cast arms. Engineered to reduce pivot wear, restore row unit stability, and maintain consistent planting depth in demanding field conditions.

$240.00

Case IH Single Arm Link

Case IH Lower Arm Bracket

Case IH Complete Arm Set

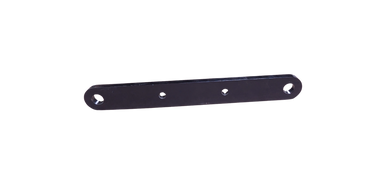

Genesis Case IH parallel arm single links. Made from AR abrasion-resistant steel.

Manufactured from high-strength AR steel to resist hole elongation common in factory Case IH parallel arms. Precision-machined for proper bushing fit and long-term durability.

$25.00

Case IH Lower Arm Bracket

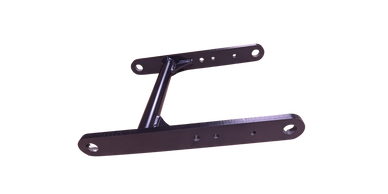

Genesis Case IH parallel arm, lower bracket made from AR abrasion-resistant steel.

Precision-cut from hardened AR steel for improved wear resistance over factory Case IH brackets. Maintains tighter row unit alignment and longer service life.

$190.00

the solution

Carlyle Metals builds direct-fit Case IH planter parallel arms from AR400 abrasion-resistant steel - hardened to around 400 Brinell, the same wear-plate steel used in skid-steer buckets and dozer edges. It's built to resist the wear and elongation at the pivots that make row units sloppy - so these arms don't just replace worn parts, they outlast them. Precision laser cut, CNC machined bushing holes, Robotic welded to spec, and made in the USA. In stock and out the door the same day, so you're in the field when it matters.

Testimonials

Greg Rastede

Lawrence Secker

"Absolutely best parallel arms out there. I have told many people these are the best you can get."

Lawrence Secker

"I bought a brand new planter and swapped the brand new arms with my Carlyle arms. I put the new John Deere arms on the planter I was selling."

Marlin Newman

Lawrence Secker

Marlin Newman

"These arms have planted over 50,000 acres. I wanted to pull them off and check to see if there has been any wear. I was blown away they hadn't wore at all, not even the bushing."

Frequently Asked Questions

Please reach us at austin@carlylemetals.com if you cannot find an answer to your question.

Why do Case IH parallel arms wear out?

Factory Case IH parallel arms are typically manufactured from softer cast materials. Over time, constant row unit load causes the pivot holes to elongate and the arm to flex. This leads to loose row units, inconsistent planting depth, and premature wear.

Genesis Case IH parallel arms are built from abrasion-resistant steel to reduce wear and maintain tighter tolerances longer.

Are Genesis parallel arms compatible with OEM bushings?

Yes. Genesis Case IH Parallel Arms are designed to work with standard OEM-style bushings and hardware. Each arm is precision-machined to maintain proper fit and alignment, allowing straightforward installation without modification to your existing planter.

How do I know if my Case IH parallel arms need replaced?

Common signs include:

• Side-to-side row unit movement
• Uneven planting depth
• Worn or egg-shaped pivot holes
• Excessive bushing wear

If these signs are present, replacing the arm restores proper row unit stability.

How long do Genesis Case IH parallel arms last?

Because Genesis arms are built from abrasion-resistant steel rather than cast material, they typically last significantly longer under the same field conditions.

What makes Genesis Case IH parallel arms different from other aftermarket options?

Genesis arms address the root cause of failure — arm wear itself.

Instead of relying on additional bushings or sleeves, Genesis uses stronger steel to maintain structural integrity and reduce long-term wear.

The last parallel arm you'll buy for your Case IH Planter
